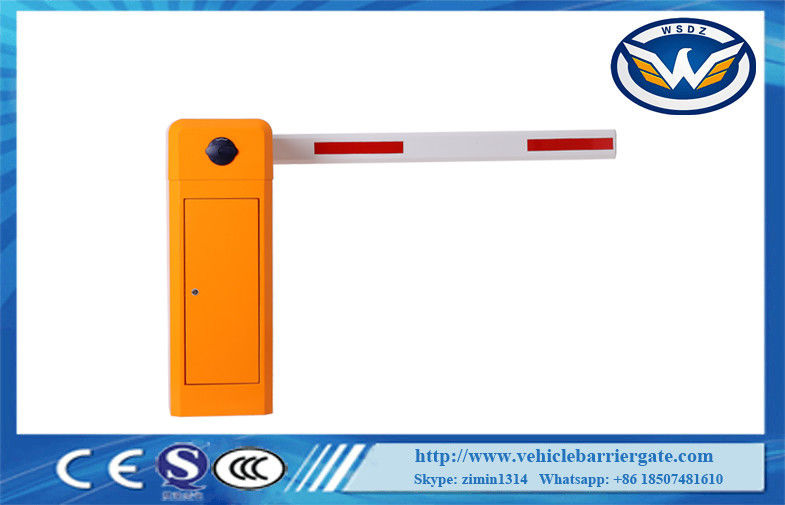

Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control

  • Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control
  • Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control
Place of Origin China
ชื่อแบรนด์ WONSUN
ได้รับการรับรอง CE, ISO, SGS
Model Number WSTP-115
จำนวนสั่งซื้อขั้นต่ำ 1 ชิ้น
ราคา negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
เวลาการส่งมอบ 3-7 วันทำการหลังจากได้รับการชำระเงินแล้ว
เงื่อนไขการชำระเงิน T / T, Western Union, Money Gram, อาลีบาบาประกันการค้า, Paypal เป็นต้น
สามารถในการผลิต 1000 ชุด/เดือน

Contact me for free samples and coupons.

วอทส์แอพพ์:0086 18588475571

วีชัต: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
รายละเอียดสินค้า
Frequency 60HZ/50HZ Motor power 120W
Working temperature -40°to 75° Product name Heavy Duty Remote Control Parking Barrier Gate For Car Parking Lot
arm type straight articulated, fence Arm material Aluminum alloy
แสงสูง

กั้นทางบูม

,

อุปสรรคไฟฟ้าบูม
ฝากข้อความ
รายละเอียดสินค้า





Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control





Specifications:



Model WSTP-115B
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 50kgs
Speed 1S,1.8S, 3S, 6S
Max boom length

6 meters(straight boom)

4.5 meters(2 fence boom)

4 meters(3 fence boom)





Product details:



1. 100% pure copper motor machine core, heavy duty and multi-function.

2. 2.00mm thickness housing, waterproof. 3-5 years without fading.

3. Manual release
4. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
5. Die-casting aluminum alloy motor, precision and good at thermal radiating
6. Motor cooling fan, solving the problem of heat-protection
7. Double safety limit switches (photocell electrical limit switch/motor memory sensor)
8. Reversing on obstacle
9. Auto-closing

10. Support the INFRARER PHTOCELL for anti-bumping function (optional)
11. Support the external and internal VEHICLE LOOP DETECTOR (optional)
12. Traffic light interface
13. Wire control (switch signal)/ Remote control (418MHZ)
14. RS485 communication module (optional)





Technology:



Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control 0

AC MOTOR-The Drive Unit

1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
2 Machine core can automatically warming when the outside temperature is below 0
3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
4 Motor cooling: Forced ventilation with fan

Compressed Balance Spring

Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidents caused by tension spring

 Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control 1
Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control 2

Liberate Cushion

Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core

Photoelectronic Limit Switch

Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely

 Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control 3
Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control 4

Arm Auto Reverse

Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle
Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle		 Heavy Duty Parking Barrier Gate , Car Parking Lot Gate Arm Remote Control 5
