Remote Control Automatic Sliding Gate Motor For Residential Or Commercial

Place of Origin China
ชื่อแบรนด์ WONSUN
ได้รับการรับรอง CE,ISO,SGS
Model Number WSTP-102
จำนวนสั่งซื้อขั้นต่ำ 1 ชิ้น
ราคา negotiable
รายละเอียดการบรรจุ บรรจุในห่อฟองแรก และจากนั้น เสริม ด้วยกล่องกระดาษสำหรับบรรจุด้านนอก
เวลาการส่งมอบ 3-7 วันทำการหลังจากได้รับการชำระเงินแล้ว
เงื่อนไขการชำระเงิน T / T, Western Union, Money Gram, อาลีบาบาประกันการค้า, Paypal เป็นต้น
สามารถในการผลิต 1000 ชุด/เดือน

Contact me for free samples and coupons.

วอทส์แอพพ์:0086 18588475571

วีชัต: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
รายละเอียดสินค้า
Name Remote Control Automatic Sliding Gate Motor For Residential Or Commercial Use Power supply AC220V/110±10%
Frequency 50/60HZ Rated power 350w
Max load weight 1800KGS Open/Closed speed V=12m/min
Working temperature of motor -25 To +55 Celsius Degree Place of origin Shenzhen,China
Keywords automatic sliding gtae motor
แสงสูง

car parking management system

,

security barriers and gates

ฝากข้อความ
รายละเอียดสินค้า

Remote Control Automatic Sliding Gate Motor For Residential Or Commercial



    automatic gate motor description

  • Power supply range:AC220/110V±10% 50/60HZ
  • Net weight 8.5 kg
  • Max loading weight:1800kg
  • Working temperature of motor:-25 to +55 Celsius degree
  • Working humidity:≤85%
  • Rated Power:200W
  • Output gear module:M=4
  • Output gear number:Z=16
  • Open(close) speed:v=12m/min
  • Maxinum pull:1100N
  • Package one set in one carton

    Product display:

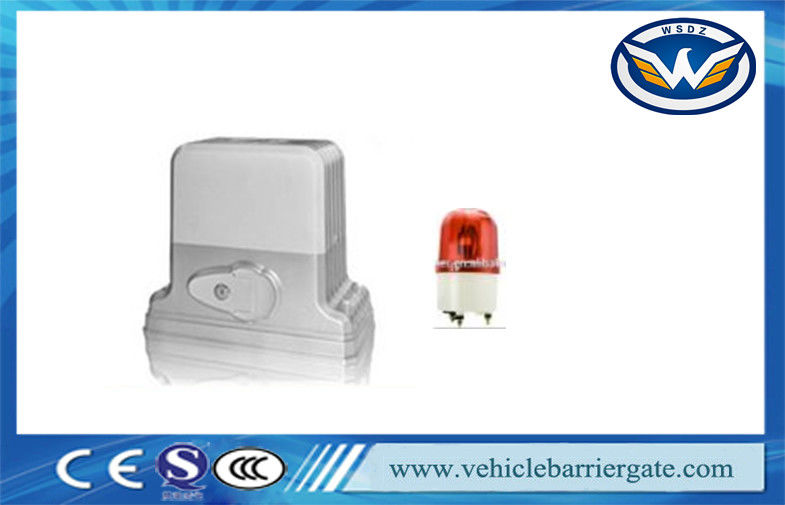

Remote Control Automatic Sliding Gate Motor For Residential Or Commercial 0
Remote Control Automatic Sliding Gate Motor For Residential Or Commercial 1



    Each kits includes:



  • 1 x motor
  • 2 x remote controllers
  • 1 x control panel
  • 1 x base plate
  • 2 x magnets
  • 1 x user's manual

   Functions and features of sliding gate motor:



​1) Integrated machanical and electrical,all functions on one controller

2) Radio controller or lines to control open,close and stop functions

3) Magnetic limit switch,the door stops when it moves to the limit

4) Accurate lomit braking

5) Electronic soft-start

6) Dialing switches to adjust the motor rotation in both directions

7) Open and close limits have a self-locking function

8) Intelligent operation- if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop keystroke

9) Movement indication - the indicator lights up when the door is moving

10) Optional line control or remote cotrol





automatic gate motor services:
Others information of sliding gate opener :
  • Guarantee time:1 year
  • Delivery deadline: 8 days delivery after receive your payment
  • Package: 1 set in a standard carton packing
  • Mininum order



automatic gate motor Packaging& Shipping



Packing list
Name Quantity Unit Remark
Sliding gate operator 1 set necessary
Remote control 2 pcs necessary
Internal hexangular bolt 4 pcs M8*40
Internal hexanhular bolt 4 pcs M6*16
Left limit iron 1 pcs necessary
Right limit iron 1 pcs necessary
Base board  1 pcs necessary
Release key 2 pcs necessary
Manual 1 pcs necessary
Infrared photocell 1 set Optional
Radio emitter 1 set optional





automatic gate motor FAQ:





Communication with customers:



1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.





Three reasons to choose WONSUN

1)Fastest finishing time:2-5days, also urgent order is acceptable.
2)Longest guarantee time for our products. especially for our boom barrier, lifetime guarantee.
3)Best after-sale service. any questions after you receive the goods, just
