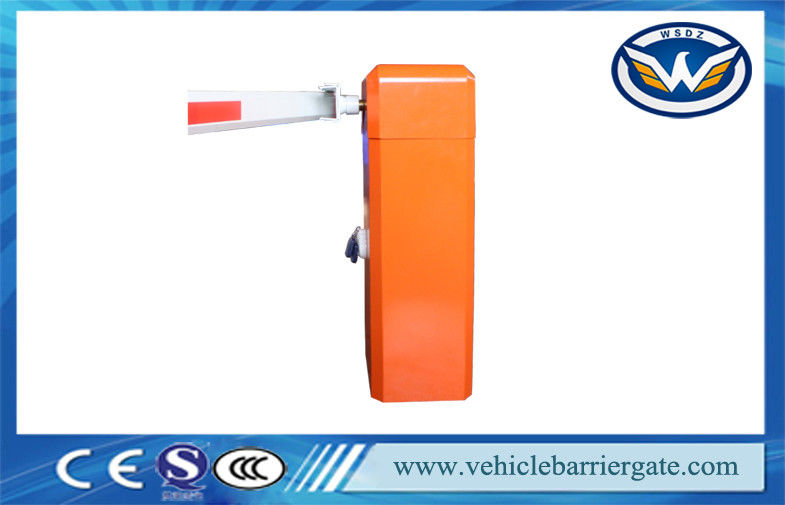

Automatic Straight Boom Barrier Gate With Arm Auto Reverse Parking Lot Barrier

Place of Origin China
ชื่อแบรนด์ WONSUN
ได้รับการรับรอง CE, ISO, SGS
Model Number WSTP-115
จำนวนสั่งซื้อขั้นต่ำ 1 ชิ้น
ราคา negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
เวลาการส่งมอบ 3-7 วันทำการหลังจากได้รับการชำระเงินแล้ว
เงื่อนไขการชำระเงิน T / T, Western Union, Money Gram, อาลีบาบาประกันการค้า, Paypal เป็นต้น
สามารถในการผลิต 1000 ชุด/เดือน

Contact me for free samples and coupons.

วอทส์แอพพ์:0086 18588475571

วีชัต: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
รายละเอียดสินค้า
Product name Automatic Straight Boom Barrier Gate With Arm Auto Reverse Parking Lot Barrier Color yellow, Orange, Black, Blue, customize optional
OEM/ODM Supported Operation Time 0.6s, 1s, 1.8s, 3s, 6s, Optional
Model Number WSTP-115 automatic barrier gate Brand Name WONSUN
แสงสูง

electric barrier gate

,

auto barrier gate

ฝากข้อความ
รายละเอียดสินค้า

Intelligent Retractable Fence Gate Vehicle Barrier Gate With Swing Out





Quick details:



Model WSTP-115
Size 320*280*935 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested




Arm Optional:

1. Straight boom arm length is 1-6 m, Speed time is 6s
2. Straight boom arm length is 1-3.5m. Speed time is 1.8s
3. Straight boom arm length is 1-3 m, Speed time is 1s
4. Straight boom arm length is 1-2.5m, Speed time is 0.6s



Arm Type:


1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm





Adavantages:



1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.

2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.

3. It is running without arm-shaking.

4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.

5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.

6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can

control the warming of the motor, makes the motor not burned easily.

7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the

problems caused by using traditional magnetic switch which is easily interfered by the external environment.

8. Barrier gate can be chosen from 1m to 6m.





Parking List:



Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1





Comunicate with customer:


1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.

2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.

3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.

4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.

5. How long will your gate barrier working?

Gate barrier life span is 5-10 years.

6. What should we do if there have problems during using?

My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome

email or

call me! We will provide our best professional service for you.

7.How to import your machines?

* We will prepare gate barrier and shipment for you after payment;

* We will give you bill of loading after gate barrier depart our shipping port;

* Our shipping agent will contact you when gate barrier arrival





Company information:



With WONSUN, your job gets easier.

As for our company, established at 2008, with more than 7 years OEM/ODM experience, with 2 technicists,

3 QC for quality control, daily production of 80 sets of barrier for usual modules.

We can accept any OEM/ODM order of barrier gate, which has high quality and competitive price.
