Product Details
Place of Origin: China
ชื่อแบรนด์: WONSUN
ได้รับการรับรอง: CE, ISO, SGS
Model Number: WSTP-115
Payment & Shipping Terms
จำนวนสั่งซื้อขั้นต่ำ: 1 ชิ้น
ราคา: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
เวลาการส่งมอบ: 3-7 วันทำการหลังจากได้รับการชำระเงินแล้ว
เงื่อนไขการชำระเงิน: T / T, Western Union, Money Gram, อาลีบาบาประกันการค้า, Paypal เป็นต้น
สามารถในการผลิต: 1000 ชุด/เดือน
Material:: |
2.00mm Cold Roll Plate Or Galvanized Plate |
Speed:: |
0.6s, 1s, 1.8s, 3s, 6s |
Features:: |
Heavy duty, manual release, swing out, remote control |
Usage:: |
Airport, highway, residential, and access control |
Color:: |
yellow, orange, blue, customized optional |
Arm Type:: |
Straight, fold, fence arm |
Material:: |
2.00mm Cold Roll Plate Or Galvanized Plate |
Speed:: |
0.6s, 1s, 1.8s, 3s, 6s |
Features:: |
Heavy duty, manual release, swing out, remote control |
Usage:: |
Airport, highway, residential, and access control |
Color:: |
yellow, orange, blue, customized optional |
Arm Type:: |
Straight, fold, fence arm |

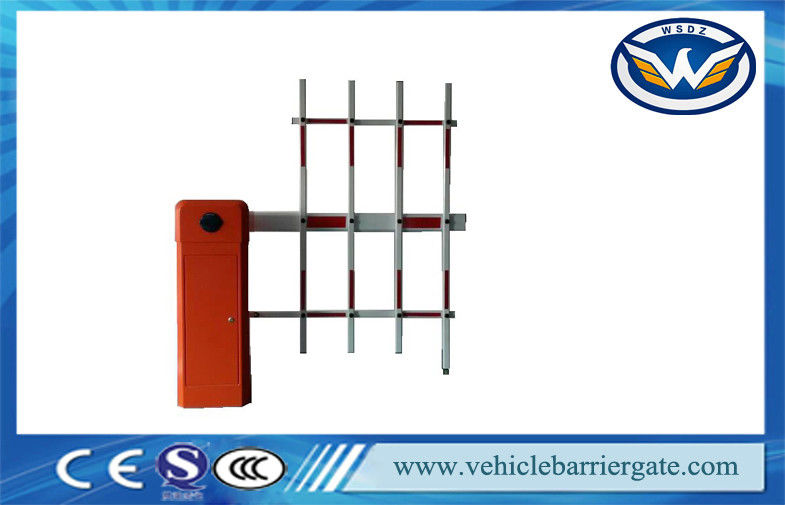

Fence Barrier Parking Barrier Gate With Manual Clutch Device When Power Off
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Specifications:
| Model |
WSTP-115 (WONSUN 1st generation machine core) |
| Power |
80w |
| Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time |
0.6s, 1s, 1.8s, 3s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers, |
Parking & Shipping:
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably.
The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Model Selection and Differences
| Boom type | Boom Length(L) | Diameter of the spring(mm) | Note | |
| Straight boom | 6M≥L≥5M | 5.5/4.5 | ||
| 5M≥L≥4.5M | 5.5 | Dispatching 4.5 | ||
| 4.5M≥L≥3M | 4.5 | Dispatching 4.5 | ||
| Straight boom adhesive tape | 5M≥L≥4M | 4.5M≥L≥3M | 5.5/4.5 | Dispatching 4.5 |
| 4M≥L≥3M | 3.5M≥L≥3M | 4.5 | Dispatching 4.5 | |
| Folding boom | 6M≥L≥5M | 6.5/4.5 | ||
| 5M≥L≥4M | 5.5/4.5 | |||
| 4M≥L≥3M | 4.5 | |||
| Two fence boom | 5M≥L≥4M | 6.5/5.5 | ||
| Fence boom | 4M≥L≥3M | 5.5/4.5 | ||
| Three fence boom | 4M≥L≥3M | 6.5/5.5 | ||
| 3M≥L≥2M | 5.5/4.5 | |||
